UPPF invisible windshield protective film is a world-class, top-performing windshield safeguard to protect the glass from exterior damage of rock chips, sandstorm, pitting, whenever driving at high speed or parking. It can keep the glass in its original perfect condition, and effectively reduce the cost of glass replacement due to damage.

Windshield
dunjia-icon
Optical Clear up to 89% Visible Light Transmittance, keeps perfect driver's view in all day.
dunjia-icon
Great Impact Resistant with a professional safety standard by 4 mil thickness.
dunjia-icon
Faster run-off of rain and snow.
dunjia-icon
Scratch Resistant up to 7H hardness.
dunjia-icon
Ban 99.9% of the sun’s harmful UV to protect a vehicle’s interior and occupants.
dunjia-icon
Can also be applied to sunroofs, side windows and rear windows for extra protection against hail and grabs
Ideal for maintaining luxury cars and fleet vehicles

UPPF Windshield Guardian can also be applied to sunroofs, side windows and rear windows for extra protection against hail and grabs. It not only protects the windows, but also protects the safety of the lives in the car.

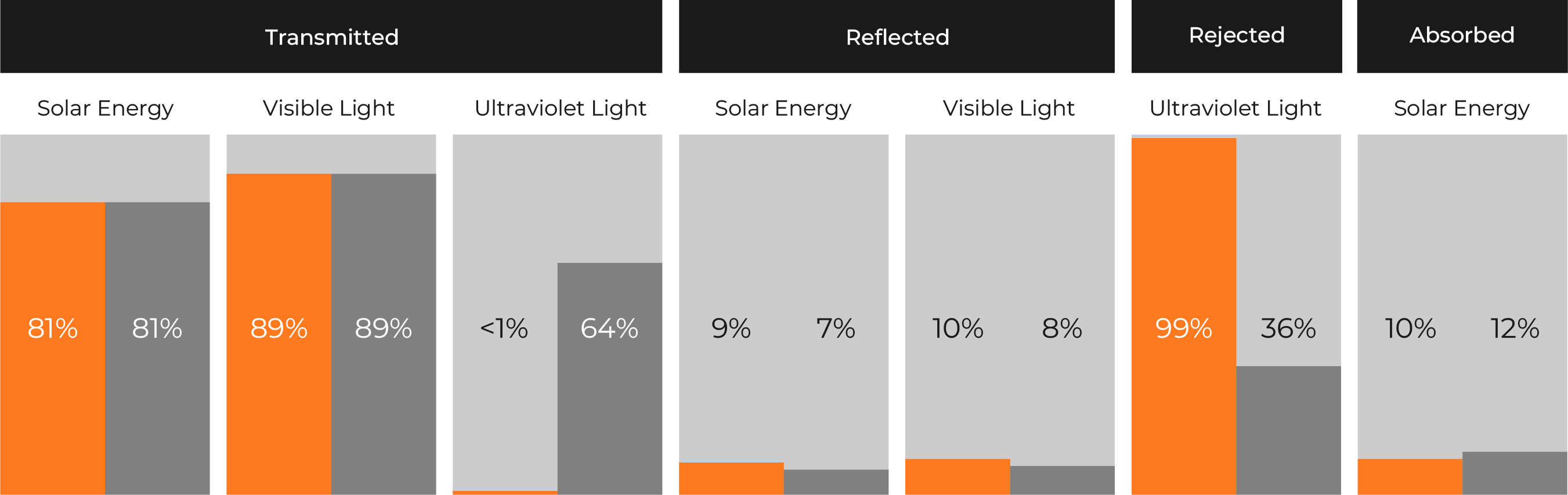

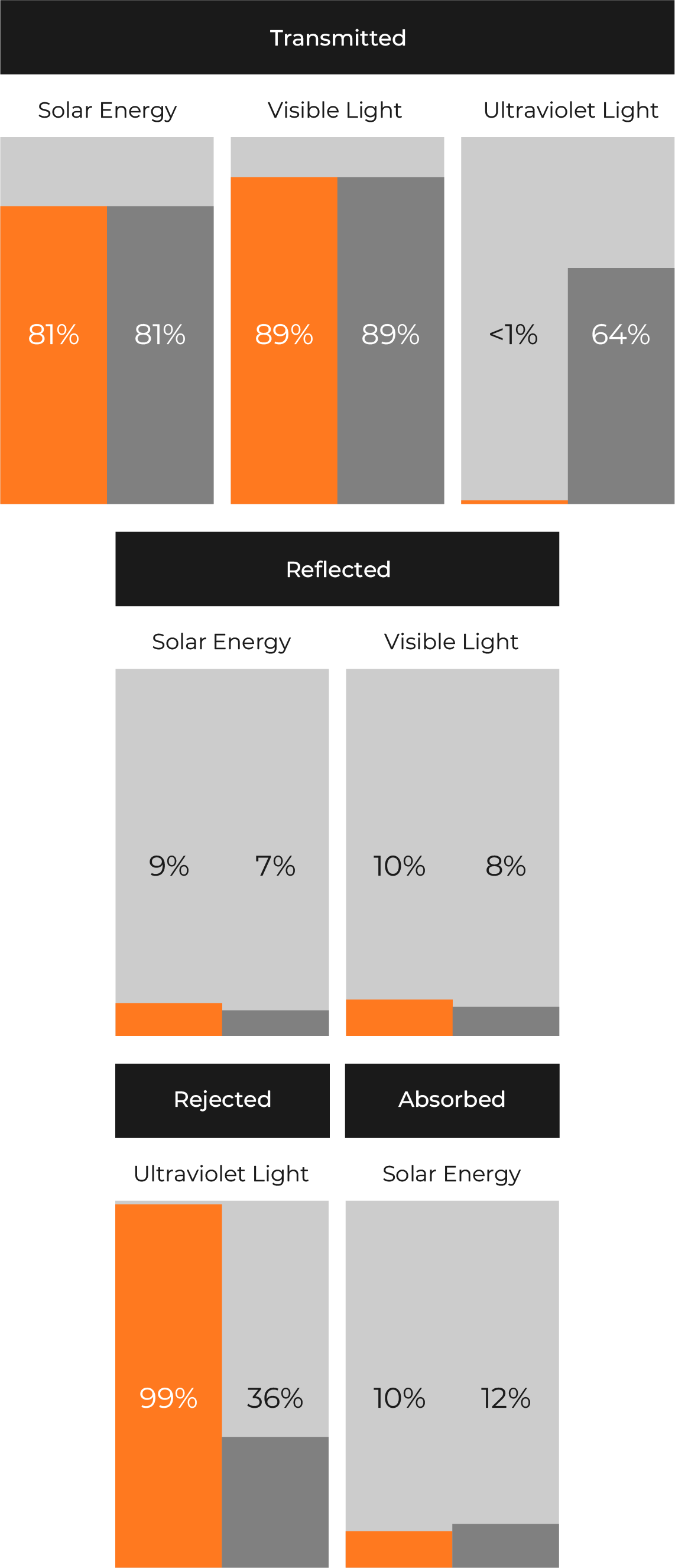

Prerformance and testing

line
parameter
parameter
parameter

Product parameter

line line
Visible Light
Transmittance
89%
Reflectance (Exterior)
10%
Reflectance (Interior)
9
Total Solar Energy
Transmittance
81%
Reflectance (Exterior)
9%
Reflectance (Interior)
10
UV & IR
Solar Heat Gain Coefficient
84%
Ultraviolet Rejection
>99%
Infrared Rejection
0.23
Pysical Properties
Film Thickness
4 mil (0.004”)
Base Film Type
Polyester
Tensile Strength
32,000 PSI Avg. MD/TD
Pysical Properties
Break Strength
100 Pounds / Inch (Width)
Peel Strength
3.5 to 4.5 Pounds / Inch
Abrasion Resistance
0.3 to 0.5 Delta Haze

* The above data is used as a reference for material selection, but does not constitute a guarantee.

* The company has the right to modify the relevant technical data without prior notice.

* UPPF provides different warranty condition for each film model in different countries, due to different weather and environment conditions. Please check with your local UPPF distributor for more detail information.

Product Life Time

Under normal use, the service life of this product is 18 months.

Shelf Life

UPPF recommends using Automotive Window Film within one year from date of purchase. Optimum storage conditions for Automotive Window Film are 40°F (4°C) to 90°F (32°C), and 40% to 60% relative humidity.

Warranty

UPPF Invisible Windshield Protective film is guaranteed not to peel, bubble, crack, or yellow for the warrantied life of the film.

Maintenance

Clean: Clean your windshield regularly using mild soap and water and a soft cloth. Do not use cleaning solutions containing petroleum distillates, silicone oils, abrasive cleaners or cloths to clean the film. Avoid the use of high-pressure sprayers or sharp objects on the windshield and other windows where UPPF protective film has been applied.

How is UPPF removed or replaced?

The film can be removed by using a hard plastic or stainless-steel object (i.e. edge of a plastic credit card or stainless-steel blade) by simply lifting the film on one edge and then pulling, using slow and consistent pressure. Any adhesive remaining on the windshield can be removed with a non-caustic cleaner designed to remove adhesive. New film can then be installed on the clean windshield.
